S204 set top box

Model Specification
S204         chipest Allwinner H3
        Digital  TV Fully compliant with HD DVB-T2,DVB-C,DVB-S2, 7 days EPG, USB PVR, Timeshift, Program       playback, Timing playing
       Multi-core CPU ARM Quad Cortex-A7 up to 1.5GHz
4*CPU @1.5GHz
      RAM DDR3 1GB
     Flash 8GB
     Wi-Fi 802.11a/b/g/n
2.4G/5G dual band
     Operating System Android 4.4.2 Kitkat
     Frequency Range VHF 174-230MHz
(UHF)474~858MHz

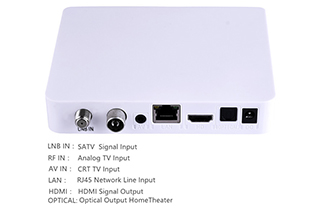

  RF Input Connector RF IN, RF OUT, IEC-connector
  Video Decoding "H.265 decoding up to 4K×2K@30fps
          H.264 HP@L5.1 up to 4K×2K@30fps
          SVC, MVC, VC-1/WMV, AVS, WebM, RMVB, MPEG1/2/4, MJPEG, H.263, DivX 3/4/5, Xvid, Real Video, VP6/8"
  Video resolution H.264/H.265 decoding up to 4Kx2K@30fps, Support 4Kx2K max resolution output
  Audio format "Decoder:
          MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE,          AAC-         LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional ) "
   Photo Format HD JPEG/BMP/GIF/PNG/TIFF
 Power
DC input range DC IN 12V/1A
Power consumption 6W Max
Dimension 140mm*120mm*25mm
Operating temperature 0-40℃,Humidity<95%
Weight 326g
Material plastic+aluminum

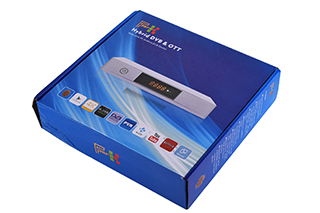

Proposed Accessory Remote control and Battery,User manual,Power adapter,AV  HDMI
